A configuration is an item that can be built (or has been built in the past) with a matching catalog number. All configurations are part of a series. It is possible to have two configurations for the same series (e.g. one for low quantity builds and another for high quantity builds).
(Look for more development with configurations at a later date.)

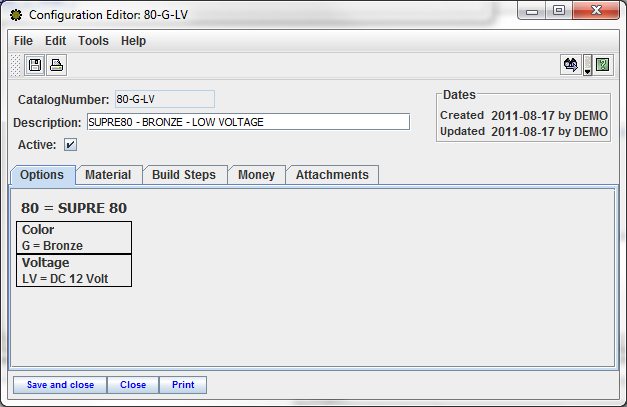

Configuration Editor
Fields
- Catalog Number - the catalog number for the configuration (required - not editable)
- Description - description of the configuration
- Active - is the configuration active?
- Created - user and date - will be blank for all lists created in revisions of OASIS prior to W415
- Updated - last user and date to update the price list
- Options - view only of the selected series options
- Material - Material used to build the item
- Build Steps - steps required to build the item.
- Money - Any pricing over-rides when using the configuration
- Attachments - the standard OASIS attachments. PDF files stored here are available elsewhere in OASIS

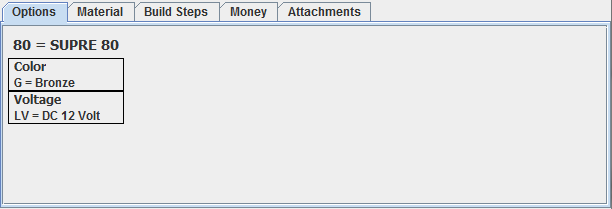

Options
This is simply a list of the options in the configuration - for reference only.
Material
Material used to build one item (in most cases).
Fields
- QTY - number of items required to build one finished item
- MFG - OASIS manufacturer entry identifying the raw material vendor
- Part - the item as recorded by the vendor
- Note - Notes about how the item will be used in this configuration.
Build Steps
Steps to use when building one item.
Fields
- Step - name of the step - required.
- Note - description of actions to take
- Hours - the time (in hours) required for one item during the step. For reference only.
Money
In some cases, the series results in a price that is significantly higher and above market value. Using a configuration, the price may be fixed (typically lower) than what the series would result.
Fields:
- User Series Pricing - ignore entries here and use the series pricing logic
- Base Cost - average cost to build this item (for internal users only - not sent to reps).
- Base Sell - the lowest sell price.
- Base Commission - commission for the base sell.
- Overageable Sell - When overage begins for the reps
- Overageable Commission - the commission at the Overageable sell
- Overageable Split - the split allowed for a sell price over the overageable sell
Menus
- File
- Save - save any changes.
- Print - not currently implemented
- Close - close window - ask first if changes have been made
- Edit
- Tools
- Help - standard OASIS help menu
Tool Bar
- Save - save any changes
- Print - not currently implemented
- Show Search - show/hide search (task) bar
- Help - show help
Task Bar
Not used at this time
