Customizable Order Listing Report

The Customizable Order Listing Report allows users to build a powerful order report from scratch that can display exactly the information that is needed. Users can group together orders, filter groups to see specific values, and add fields to the layout of the report. This article will explain the options and features available within the Customizable Order Listing Report. To watch a video on this topic, click here. For a list of field descriptions, click here.

1. Navigate to the Orders page.

2. Select the “Reports” tab.

3. Select “Customizable Order Listing Report” from the drop-down list.

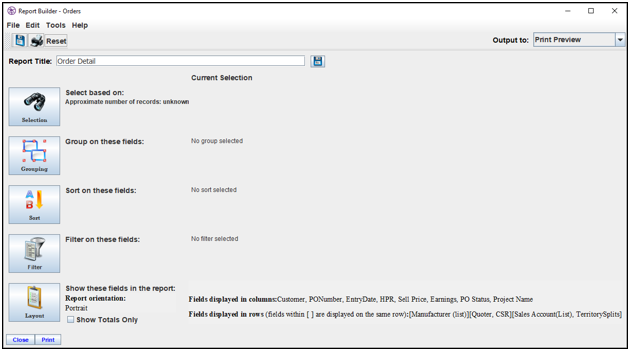

4. The “Report Builder - Orders” window will appear.

Selection

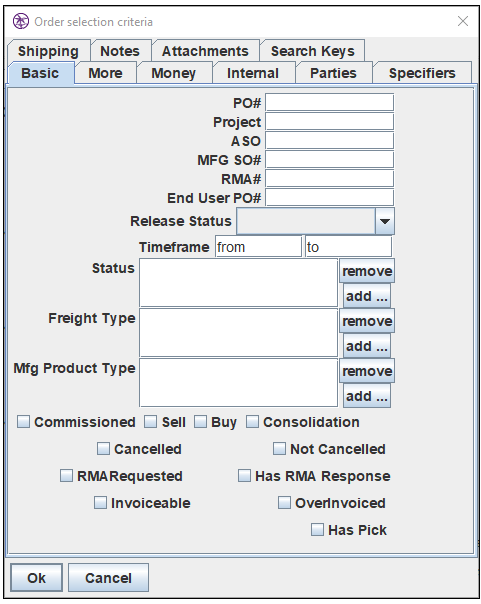

1. Use this window to define a list of orders to be included in the report. Note: users do not have to fill out criteria on every tab.

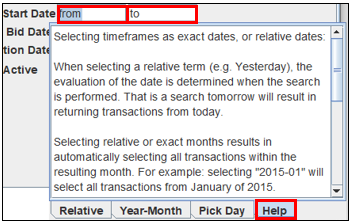

• Basics- general order information. Note: users must define at least one timeframe such as bid date. To learn more about specifying a timeframe, select a “from” or “to” field for any date, then select the “Help” tab.

• More- additional order information
• Money- minimum or maximum dollar amounts for various price levels
• Internal- internal order identifiers
• Parties- parties associated with the transaction
• Specifiers- specifier information
• Shipping- shipping information
• Notes- notes or internal notes
• Attachments- attachments criteria
• Search Tags (Keys)- search tags

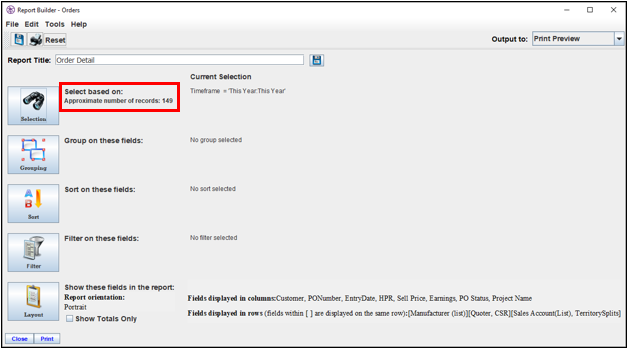

2. The number of orders currently being included in the report will now appear in the “Approximate number of records" field.

Grouping

1. Use this window to group together orders by a shared value.

2. Click to select a field from the “Fields that can be used for grouping” section.

3. Select “Add.” Caution: grouping by more than one field can generate strange results and is generally not recommended.

4. The field will appear in the “Report currently groups on these fields...” section.

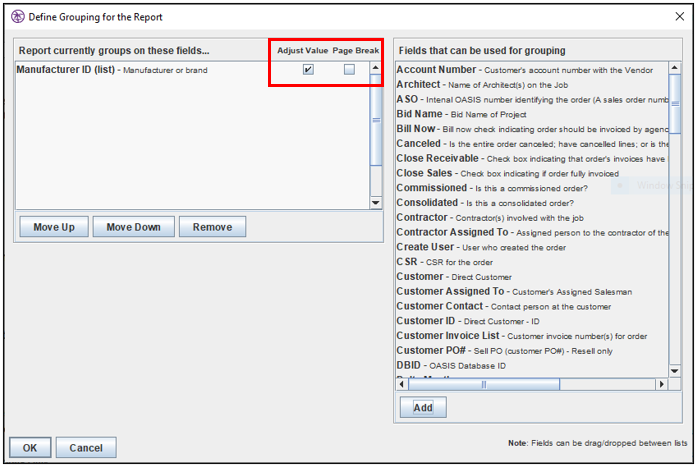

5. If desired, check the "Adjust Value" or "Page Break" box to modify the grouping.

• Adjust Value- this will generate the grouping’s specific dollar amounts. For example, if grouping by “Manufacturer (list)” with the adjust values checkbox checked, any dollar amounts on the report will show the dollar amount for that manufacturer only.
• Page Break- this will generate a page break between each grouping.

6. Select the “Move Up,” “Move Down,” or “Remove” button to rearrange any selected fields.

Sort

1. Use this window to sort by a field on the report. Note: this step is optional. By default, it will show information in the order that it was found in the database.

2. Select a field from the “Fields that can be used for sorting” section.

3. Select “Add.”

4. The field will appear in the “Report currently sorts on these fields…” section.

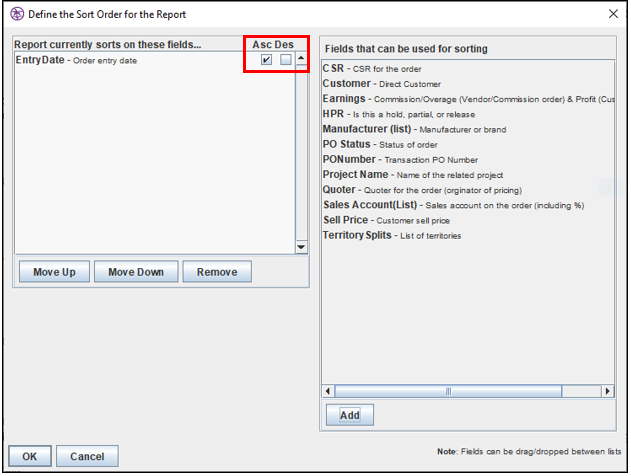

5. Check a box to define the sort order for the grouped field.

• Asc- this will sort the field by ascending order.
• Des- this will sort the field by descending order.

6. Select the “Move Up,” “Move Down,” or “Remove” button to rearrange any selected fields.

Filter

1. Use this window to filter a grouping to only include desired values. Note: a grouping must be defined in the “Grouping” tab; however, not all groupings can be filtered.

2. Select the  button to select a value.

3. The “Select items to add…” window will appear.

4. Select one or more values.

5. Select “Ok” to complete the selection. Note: any filter will change the approximate number of records on the report, but the new number will not be reflected in the “Approximate number of records” field. If the report does not generate any results, adjust the filter.

Layout

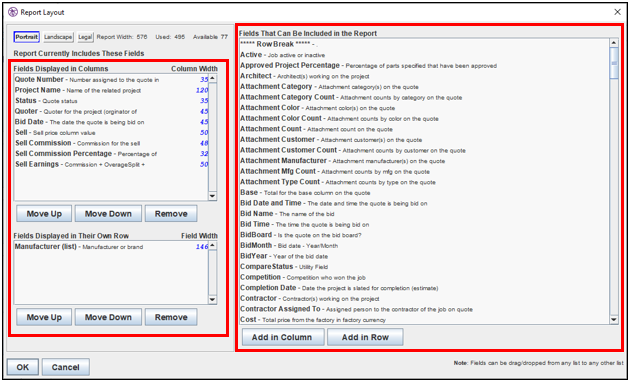

1. Use this window to customize the fields that appear in the report.

2. Click to select a field from the “Fields That Can Be Included in the Report” section.

3. Select “Add in Column” or “Add in Row.”

4. The field will appear in the respective section on the left.

5. Select “Move Up”, “Move Down”, or “Remove” button to rearrange any selected fields.

6. Double click a column width or field width number.

7. Adjust the width as necessary. Note: a blue number indicates that the field can fit onto the page, whereas a red number indicates that the field cannot fit onto the page. Use the “Available” field to gauge how much room is left on the page before adjusting column widths.

8. Select “Portrait”, “Landscape”, or “Legal” to change the orientation of the printed report.

9. Select “Ok.”

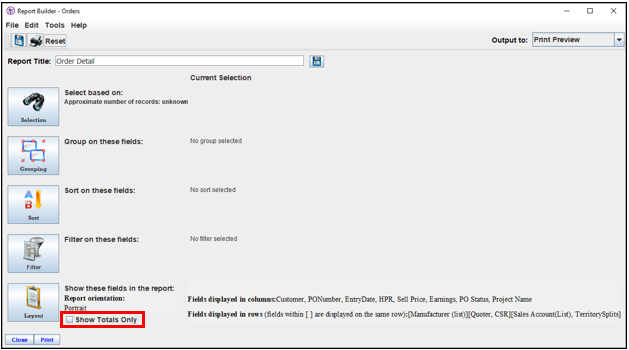

10. If desired, check the “Show Totals Only” checkbox to generate a summary report.

Save and Print the Report

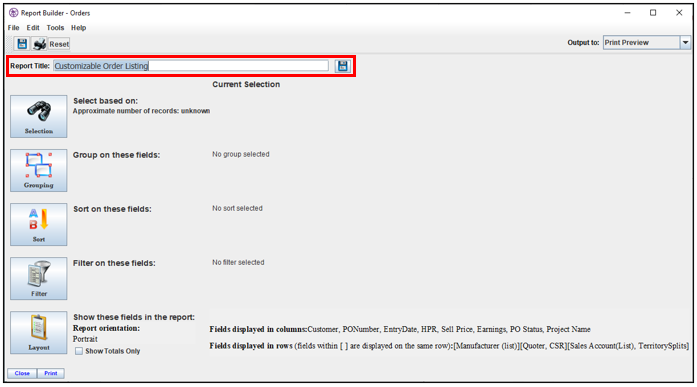

1. Enter a name for the report in the “Report Title” field.

2. Select the  button to save the report to the “Reports” page. To learn more about accessing a saved report, click here.

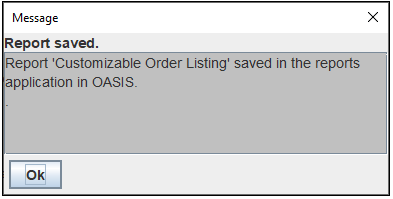

3. A “Message” window will appear indicating that the report has been saved to the Reports page.

4. Click “Ok.”

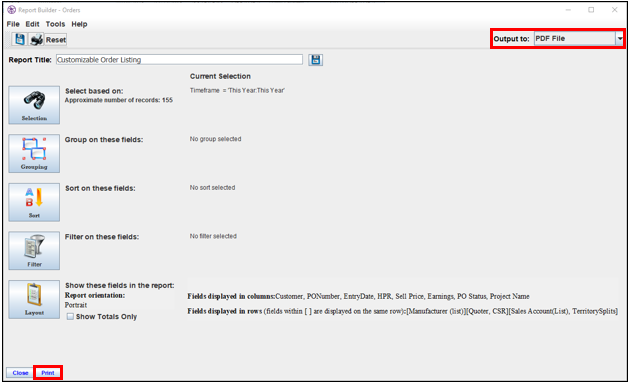

5. Select an “Output to:” field.

• Local Printer- the system printer dialog is used to select a printer.
• Print Preview- the report is shown in the print preview dialog box.
• PDF File- a file selection dialog box is used to select the name and location where a PDF copy of the print will be produced.
• Microsoft Excel- a file selection dialog is used to select the name and location where an Excel copy of the print will be produced.
• Send Message- the OASIS send message feature is activated for emailing a PDF copy of the print.
• Send Message (Excel)- the OASIS send message feature is activated for emailing an Excel copy of the print.

6. Select “Print.”
