Bill of Material Quick Edits

Have more questions? Submit a request

Users can copy, paste, and move rows to make creating a bill of material more efficient. Users can also add, delete, and change columns within the bill of material without accessing what is known as the "Preferences" window in Legacy OASIS. This documentation defines the buttons and keyboard shortcuts available for the Bid Editor. Note: to enter edit mode, click Edit_Button.PNG.

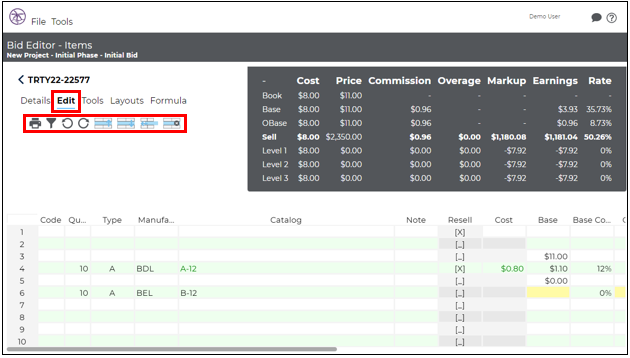

Edit Menu

The following buttons are available from the Edit menu.

mceclip2.png- print a copy of the bill of material

mceclip1.png- filter the bill of material by manufacturer

7.PNG- undo action

6.PNG- redo action

MoveRowUp_1.png- move selected row up

MoveRowDown_1.png- move selected row down

InsertRow_1.png- add row

RemoveRow_1.png- delete selected row

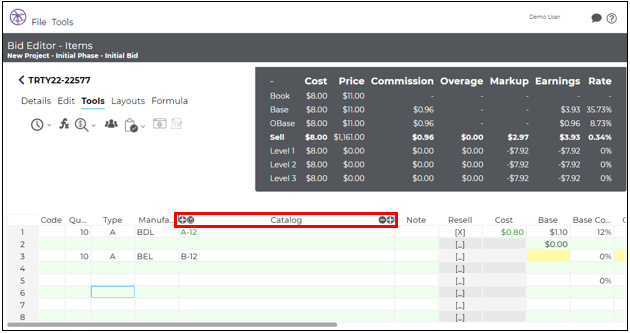

Column Buttons

The following buttons appear when hovering your cursor over a column header.

Edit_Button.PNG- change column type

Increase.svg- add column (to the left or right)

Decrease.svg- delete column

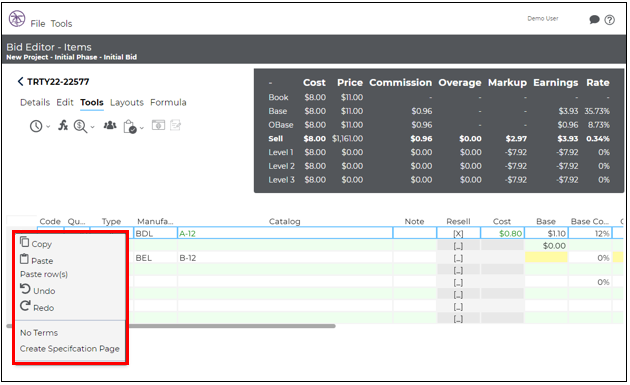

Copy & Paste Options

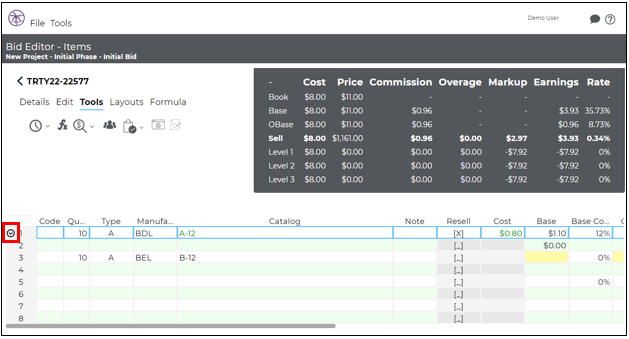

The following options appear when opening the drop-down menu for selected rows or by right clicking a cell.

Copy_1.png- copy

Paste_1.png- paste into a cell (select Paste Row(s) to paste one or multiple rows)

7.PNG- undo action

6.PNG- redo action
